Vehicle Model Information | Body Structure | Battery Capacity （kWh） | Battery Brand | Drive Type | Seating Capacity | ||||
Monocoque | 53.58 | CATL | Electric Drive Axle | 15 | |||||
Basic Parameters | Length（mm） | 5452 | Front Overhang / Rear Overhang（mm） | 1222/1200 | |||||
Width（mm） | 1700 | Gross Vehicle Weight（kg） | 3250 | ||||||
Height（mm） | 2185 | Curb Weight（kg） | 2255 | ||||||
Wheelbase（mm） | 3110 | Maximum Speed km/h | 100 | ||||||
Interior Height（mm） | 1520 | Driving Direction | LHD (Left Hand Drive)/RHD (Right Hand Drive) | ||||||
Configuration | Item | Configuration items | Standard Configuration | Optional Configuration | |||||
High Voltage Components | Drive Motor Manufacturer / Power | 50/80kW |
| ||||||
Power Battery Manufacturer / Capacity | CATL / 53.58 kWh |
| |||||||
DC Fast Charging | 380V charging pile input, GB/T charging standard |
| |||||||
AC Charging | 3.3kw，GB/T charging standard | 6.6kw，GB/T charging standard | |||||||
Running Gear System | Suspension | Front independent suspension, rear variable stiffness leaf spring (-4/) |
| ||||||
Tires | 195/70R15C 4pcs | Spare tire (steel rim) provided with the vehicle | |||||||
Rims | Steel rims | Aluminum rims | |||||||
Control System | Steering | Tilt-adjustable steering wheel, electric power steering |
| ||||||
Central Control | Remote control lock + central locking |
| |||||||
Brake System | Brake | Front disc, rear drum brakes |
| ||||||
Brake System | Vacuum-assisted hydraulic braking |
| |||||||
ABS+EBD | Configuration |
| |||||||
Safety Configuration | Low Speed Pedestrian Warning System | Configuration |
| ||||||
Reverse Radar | Configuration |
| |||||||
Interior | Seats | 15 seats (2+3+3+3+4), fabric upholstery, 3-point seat belts for driver & front passenger, 2-point seat belts for passengers |
| ||||||
Central Storage Box | Configuration |
| |||||||
Floor | PVC floor covering | Aluminum alloy floor | |||||||
Rearview Mirror | Manual rearview mirror , inside rearview mirror | Electric side mirrors | |||||||
Exterior | Door Type | Driver & co-driver doors; left middle sliding door; rear door |
| ||||||
Side Windows | Power windows for driver and front passenger; white fixed glass in passenger area, with sliding windows at the rear on both sides. | Grey privacy fixed glass in passenger area, with sliding windows at the rear on both sides. | |||||||
Intelligent System | Hill-start Assist Control (HAC) | Configuration |
| ||||||
Economical Driving Prompt System | Configuration |
| |||||||
Brake Energy Recovery Mode | Configuration |
| |||||||
Air & Heating System | Air Conditioner | Heating & cooling for driver area, cooling only for passenger area |
| ||||||
Electrical System | CAN Bus | CAN bus instrument panel |
| ||||||
Battery | Maintenance-free12V60Ah |
| |||||||
Audio & Video System | Radio | MP5+Rearview Camera | |||||||
Lighting Configuration | High Mounted Rear Brake Light | Configuration
|
| ||||||
High Mounted Rear Brake Light | Configuration
|
| |||||||
Front Fog Light | Configuration
|
| |||||||
Tools & Accessories | Tools & Accessories | Yes |
| ||||||
Cold-Resistant Craftsmanship | Whole Vehicle Cold Protection Craftsmanship | No | High-cold version | ||||||

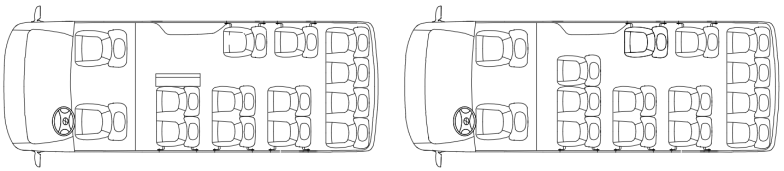

Seating Layout Diagram | 15seats
| ||||||||
