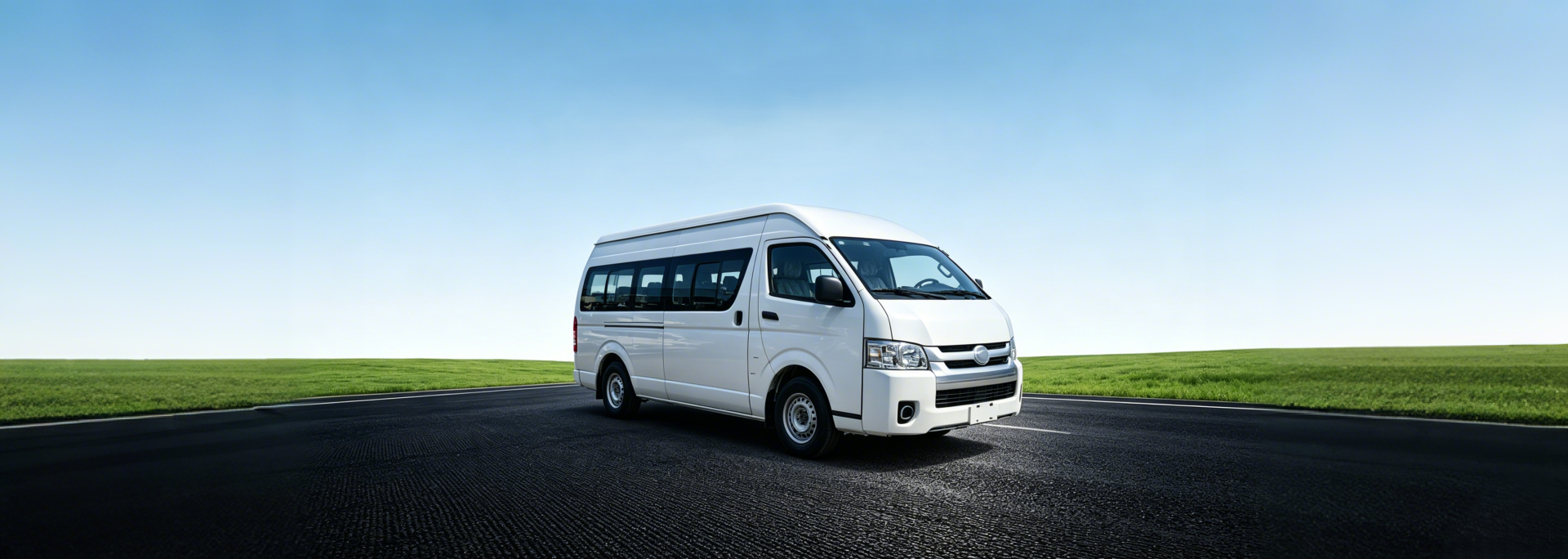

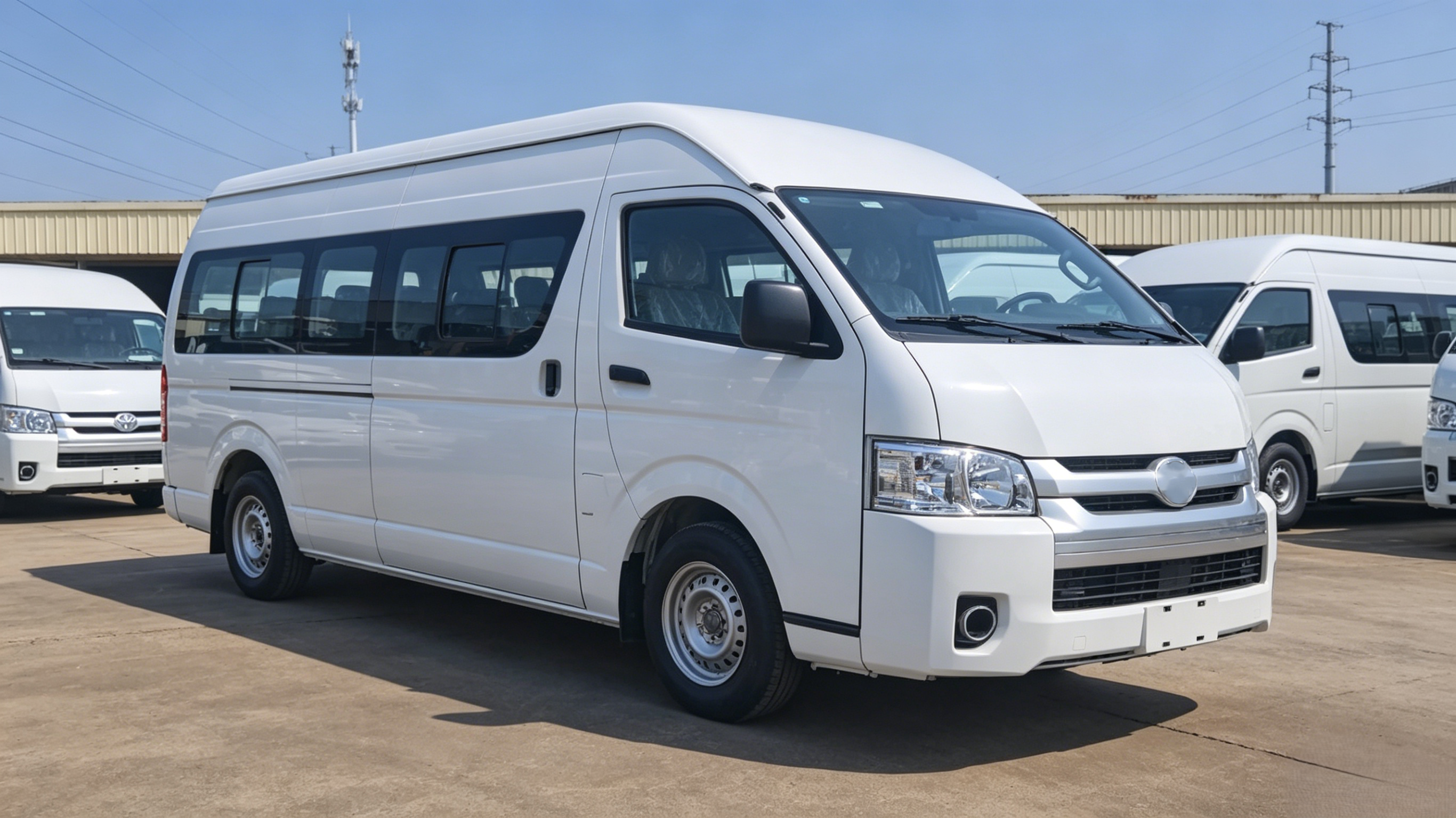

    5.4m electric passenger van

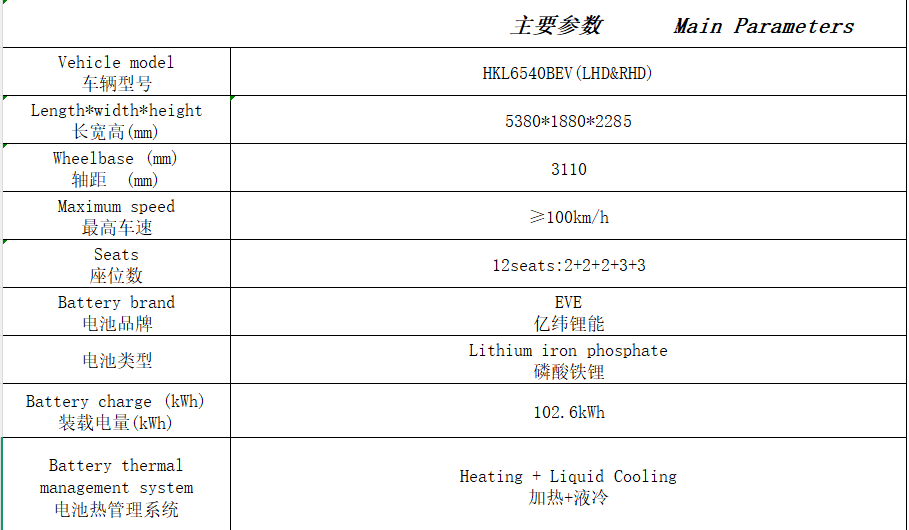

    This vehicle model is available in both left-hand drive (LHD) and right-hand drive (RHD) versions. Its overall dimensions are 5380×1880×2285 mm with a wheelbase of 3110 mm, featuring a 12-seat layout (2+2+2+3+3). The maximum speed is no less than 100 km/h, and the CLTC driving range reaches 500 km.

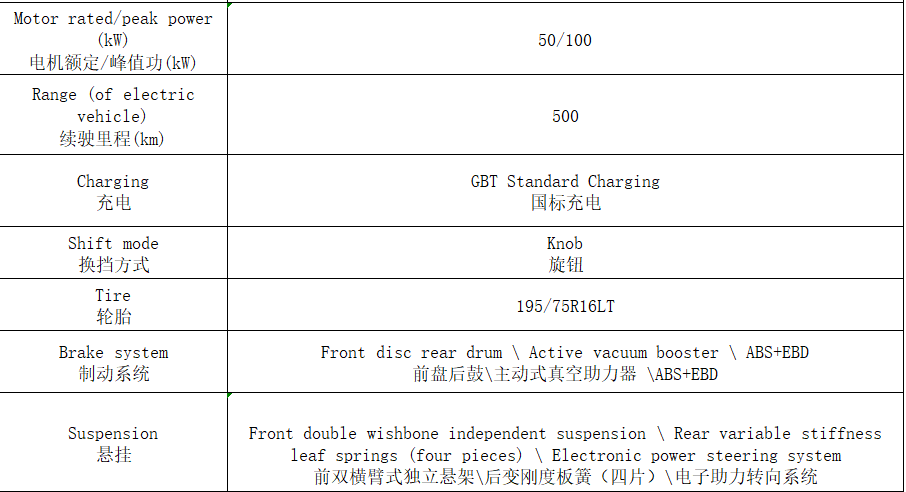

    Equipped with a 102.6 kWh lithium iron phosphate battery manufactured by EVE Energy, the vehicle integrates an integrated liquid cooling & heating thermal management system, paired with a drive motor with 50 kW rated power and 100 kW peak power. It adopts the national standard GB charging connector and features a knob shift mode.

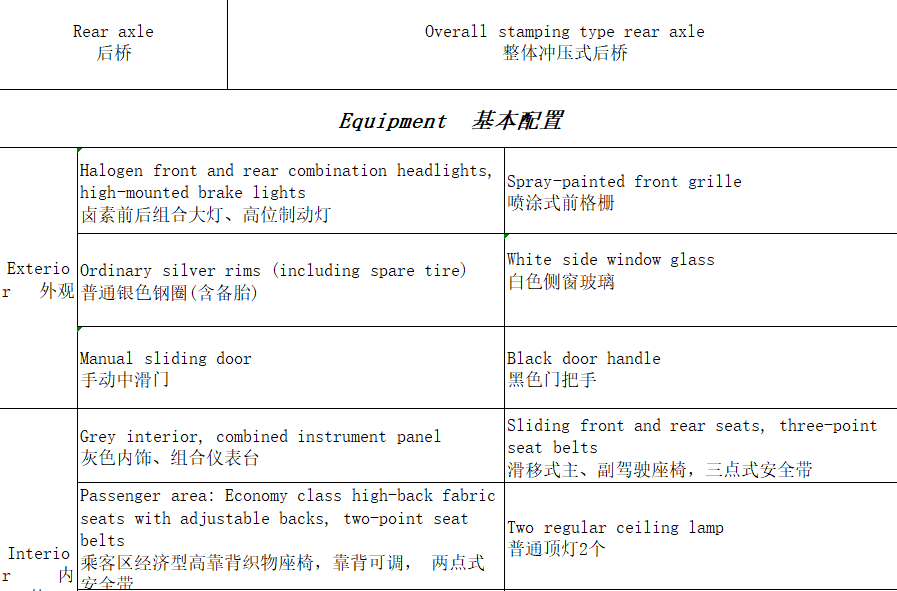

    The chassis consists of front double wishbone independent suspension, four-piece variable-stiffness rear leaf springs and an integrally stamped rear axle, alongside electric power steering. The braking system adopts front disc and rear drum structure with active vacuum booster, ABS and EBD.

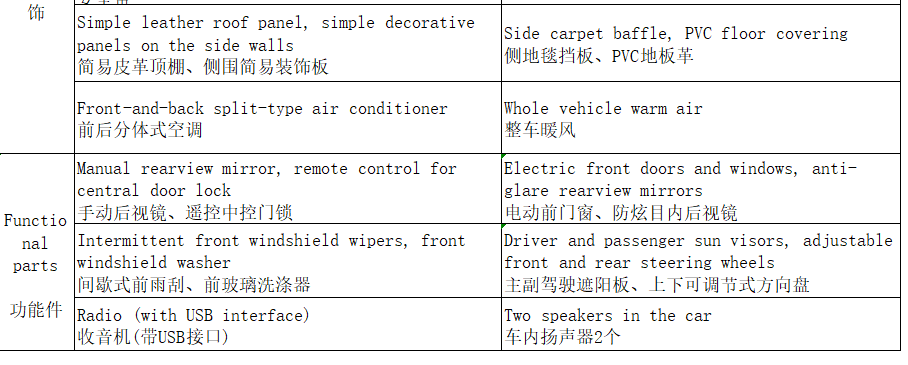

    Standard exterior fittings include halogen combination lamps, manual middle sliding door and silver steel wheels. The interior features a grey fabric cabin fitted with front-rear split air conditioner and full-vehicle heating system. Practical configurations such as seatbelts, remote central locking and USB audio system are all equipped, balancing practicality for passenger transport and commuting with excellent range economy.

    Download:

    3D view

    Responsive image

    Performance


    Specification

    Parameter
